How to study the Reinforcement Drawings of beams which have been generated in TSD.

Tekla Structural Designer is advanced software used for Structural Analysis and Design of a Building. In Tekla, we can do the detailing of steel structures as well as RCC structures. We can create RCC buildings and we can insert the rebars in Tekla structures Designer software.  We can also do the form works and structural drawing without the help of any other software.

Let’s go step by step to learn how to study the Reinforcement Drawings of beams that have been generated in TSD.

Step 1

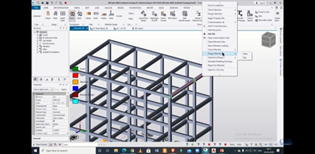

As we can see, this building has been fully designed and analysed. Now, just right click on the beam then click on the report for the member and it will generate the report for the member and we will see this and after that, we can also check the file for the particular beam.

Fig.1

Step 2

Now we have 3 numbers of sections, for each beam, it has been made and the respective cross-section is also given.

Step 3

Now if we just go through the drawing, we can see that we have 2 bars of 16mm at the top and as we can see in the cross-section also that we have 2 bars of 16mm and at the bottom, we have 3 bars of 12mm and also we have 8mm stirrups.

Fig.2

Step 4

For a clear image just again right-click on the beam and then click on generate detailing drawing of the members then click on ok. So after we click on ok, the Autocad file is opened. Here we can see that 2 bars of 16mm at the top and 3 bars of 12mm at the bottom of the reinforcement in all of the reinforcement but at the end, we have 4 bars of 16mm at the top and 6 bars of 12mm at the bottom. So, like this, we can give the reinforcement drawing.

Fig.3







So like this, you can study the Reinforcement Drawings of beams that have been generated in TSD.
