How to Provide Reinforcement in multiple columns in Tekla Structures

 Tekla Structures is a Building Information Modeling (BIM) software able to model structures that incorporate different kinds of building materials, including steel, concrete, timber and glass. However it is widely used for the detailing of structural drawing.

In this blog, we are going to discuss how  to provide reinforcement in multiple columns in Tekla Structures.

So let's start the step by step procedure


Step 1 : At first we must make sure that our model is correct and after that we will look for the column reinforcement application.


Step 2 : Search result will give us lots of options which includes application of column (for both the RCC and steel).


Step 3 : Now from there we have to select an app for RCC. column.



Step 4 : We will go for Application no. 57 which is "Column automated reinforcement layout".

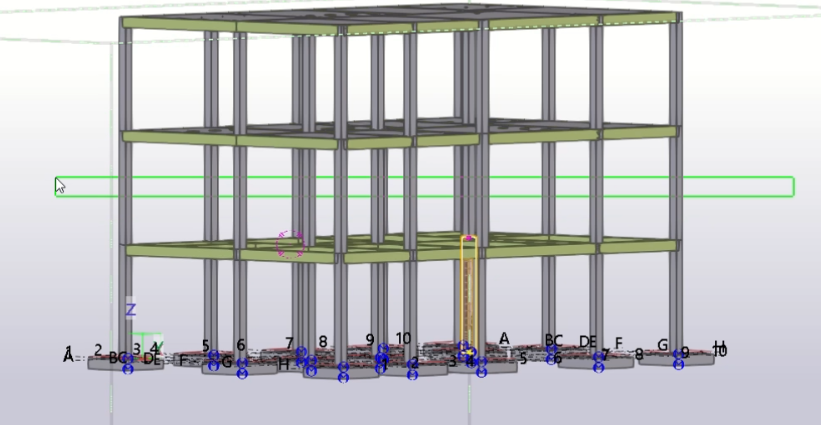

Step 5 : Select and define the application according to our requirement. Now select all the columns by dragging the mouse from right to left. It will select all the columns that will touch the green line.

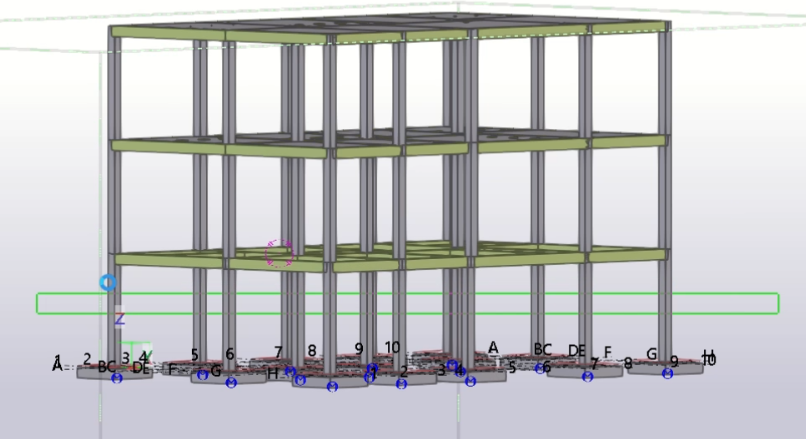

Step 6 : We will repeat the process for all floors like ground floor, first floor & second floor.

Step 7:  Now we will go to wireframe view. For that go to view, then rendering, then part

wireframe.

Step 8 : Now we can clearly see reinforcement in all my columns has been provided automatically.


For more details, watch this: https://youtu.be/-6woNUhyNeM
